The main technical parameters:
1、Power requirements
voltage:220V±10% Power frequency:50Hz±0.5Hz
Power supply resistance: 2Ω battery capacity:200VA
2、Technical Parameters:
Tube voltage (kV): 40 ~ 110kV (1kV increments / decrement)
Tube current (mA): 20,30,40,50,60,80,100 mA
Exposure time (s): 0.04 to 5.0 s
3、Photography bed
Bed size: 1200 × 700 × 745 (mm) (length × width × height)
Bed movement range: vertical ± 250mm horizontal ± 100mm
Focus distance: 1100mm
4、X-ray tube assembly, column
Move up and down: 590 mm
Rotate around the center of the arm: ± 90
Maximum size of film holder: 356mm × 432mm (14 "× 17")
6、Filter (fixed) Gate density: N103 Focal length: 1000mm
7、Maximum size: 1200 (length) × 885 (width) × 2040 (high)
8、Features:
(1)Designed for animal photography, easy to operate
(2)Imported X-ray host, the quality is better
(3)Standard battery-powered, film effects from AC power conditions, power failure can also be film.
(4)Double panel control, can operate in the near Taiwan, but also compartment operation, so that doctors away from radiation damage
Track-type clip structure design, light and flexible operation.
(5)improved internal balance structure, shape simple, beautiful.
Machine integrated design, small footprint, suitable for small veterinary use
(6)South Korea aluminum-based fine lines fixed filter grid, the image is more clear
Floating bed, electromagnetic lock

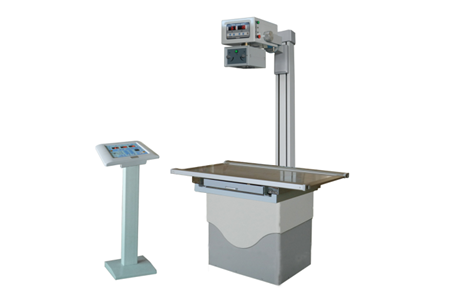

9、Detail image:
