The main technical parameters
1、Power requirements:
Power supply voltage: 220V ± 10%
Power frequency: 50Hz ± 0.5Hz
Power supply resistance: 0.5Ω (220V)
Power capacity: 4kVA
2、Technical Parameters:
Tube voltage (kV): 40 ~ 110kV (1kV increments / decrement)
Tube current (mA): 30 ~ 70 mA
Exposure time (s): 0.04 to 5.0 s
Tube current Tube voltage Time(s)
30 40-1100. 04-5.0
35 40-1000. 04-4.0
40 40-85 0.04-4.0
50 40-70 0.04-3.2
70 40-50 0.04-3.2
3、Photography bed
Bed size: 1200 × 700 × 750 (mm) (length × width × height)
Bed movement range: vertical ± 250mm horizontal ± 100mm
Focus distance: 1200mm
X-ray tube assembly, column
Move up and down: 570 mm
Rotate around the center of the arm: ± 180º
4、Maximum size of film holder: 356mm × 432mm (14 "× 17")
5、Filter (fixed) Gate density: N103 Focal length: 1000mm
6、Features:
Designed for animal photography, easy to operate
Machine integrated design, small footprint, suitable for small veterinary use
South Korea aluminum-based fine lines fixed filter grid, the image is more clear.
Floating bed, electromagnetic lock

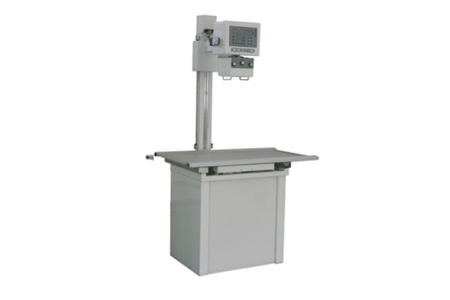

7、Detail image:
